Axle Housings
Our axle housings are engineered for strength, consistency, and durability in demanding off-road and race applications.
Axle housings are available as:
-
Housing only
-
Built-to-spec assemblies, based on your application and component selection
Standard Axle Housings start at $1,600.
Final pricing depends on configuration, options, and build requirements.
Axle Housing
configurations
Materials & Construction
-
Shell and tubes constructed from 1018 mild steel plate and DOM tubing
-
1/2" thick face plate
-
1/4" thick shell with internal gussets
-
4" x 3/8" wall DOM tubes
-
1/4" rock skid / bash plate (A50 material)
Engineering Details
-
24" wide center section
-
5-5/8" tube engagement per side
-
Scalloped center section ends to distribute load over a wider area
-
Assembled in a jig using a true bar and pucks to ensure straightness throughout fabrication
Hardware & Sealing
-
Inner axle seal housings / axle installation guides
-
Available with 35- or 40-spline seals
-
ARP 3/8" studs, 12-point nuts, and washers included

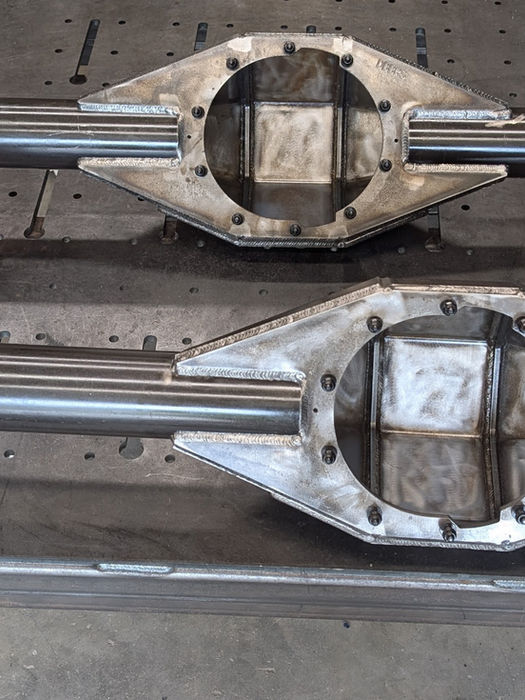

Axle Housing COnstruction
Steering Axle Options
Compatible with:
-
Partially Committed Racing — Reject Knuckles
-
Crane Axle — Magnum Knuckles
-
American Iron — Superduty C’s and Knuckles
Rear Axle Options
Unit bearing cups available from:
-
Branik Motorsports
-
Crane Axle
-
Mark Williams Enterprises
-
Spidertrax
Additional Options
-
Fill caps / inspection covers
-
Vent bungs
-
Pinion and differential guards
-
Brake brackets
-

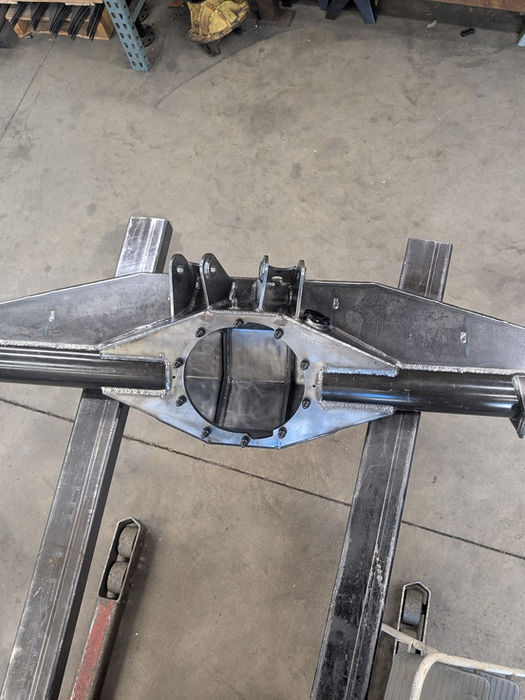

Front and rear truss options
-
Steering ram mounts
-
Upper and lower link mounts
Options & Compatibility
